ADA Ramp Installation Anderson IN

ADA ramp compliance is not about general accessibility — it's about specific, measurable dimensions that are verified by inspection. The critical numbers are the 1:12 running slope (one inch of rise for every 12 inches of horizontal run), 2% maximum cross-slope, and 60-inch level landing at the top. These aren't design guidelines — they're minimum requirements that a concrete ramp must meet as-built, not just as-designed.

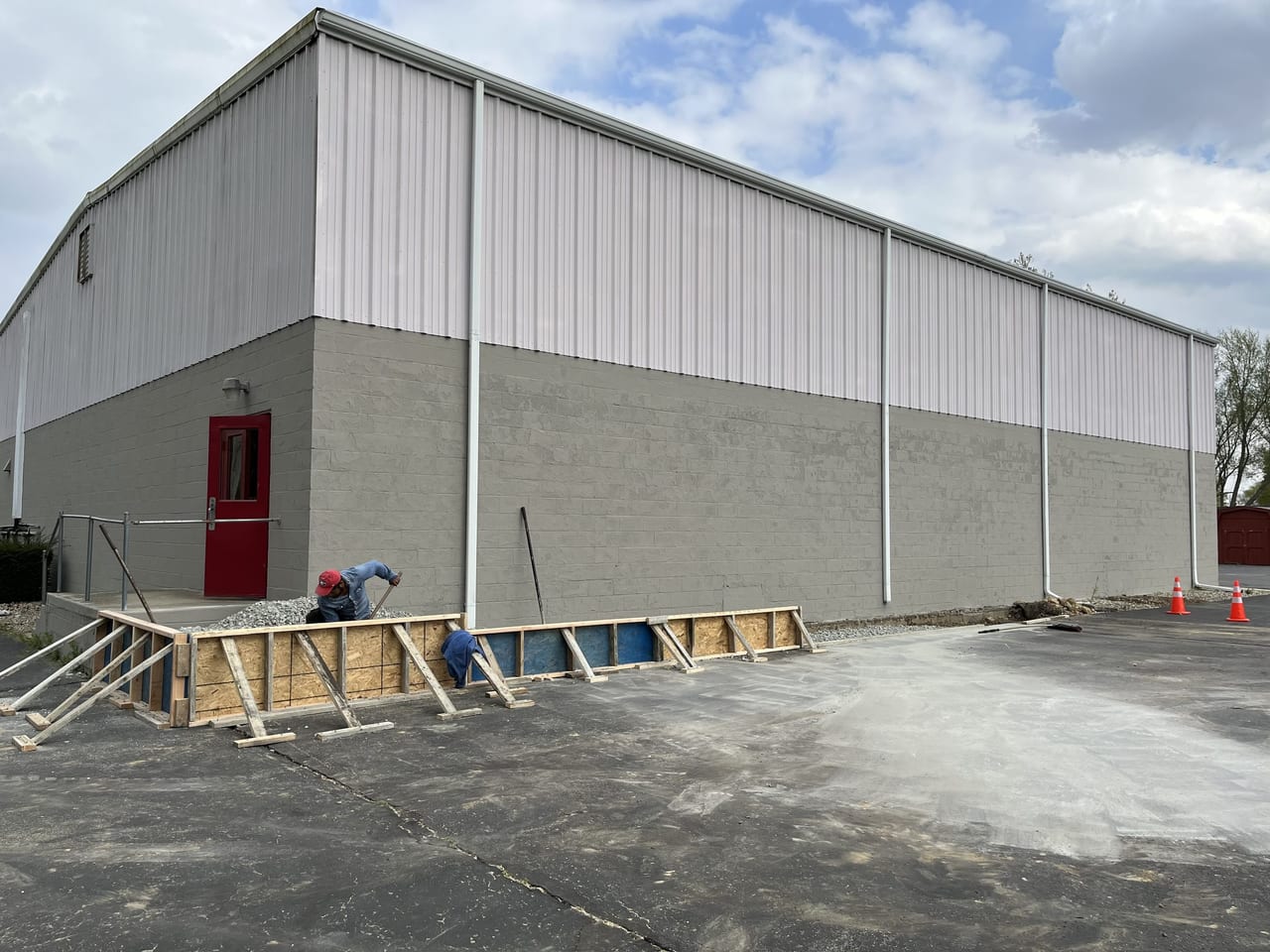

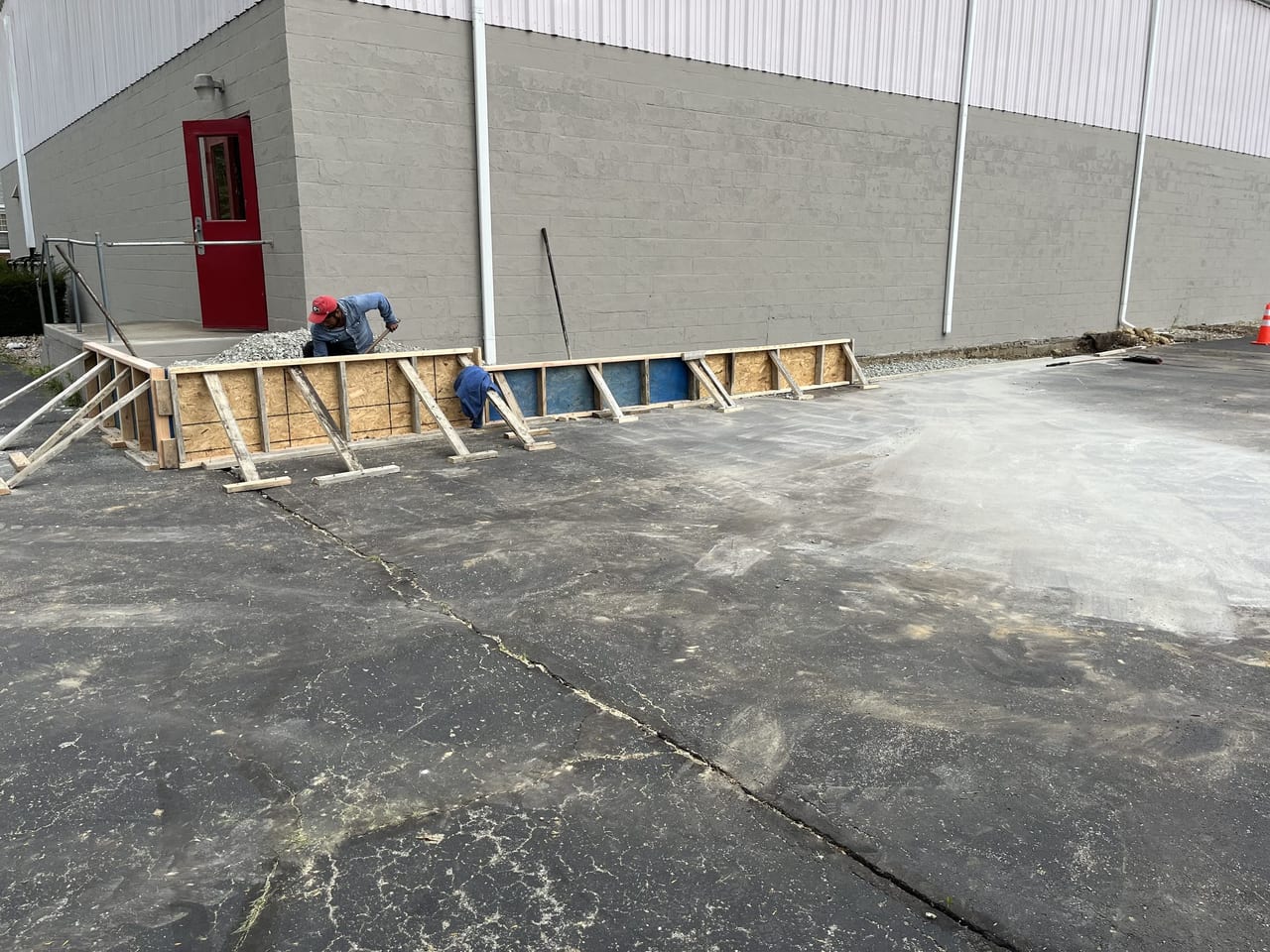

The most common failure mode on older ramps is cross-slope. A ramp built to 1:12 running slope but with a 4% cross-slope fails ADA compliance even though the running slope is correct. Cross-slope causes wheelchair drift — the user has to fight the chair to travel in a straight line. We set forms with a level and verify both running slope and cross-slope before the pour. If the site grade doesn't allow a compliant cross-slope without significant grading work, we scope that grading as part of the project.

Detectable warning surface — the dome panels are required, not optional

PROWAG requires a detectable warning surface — truncated dome panels — at the base of every curb ramp where the ramp meets the street grade. The domes are detectable by cane and underfoot to alert visually impaired pedestrians that they are transitioning to a vehicle travel zone. The panel must be the full width of the ramp and 24 inches deep in the direction of travel. We install cast-in-place or surface-applied dome panels in a contrasting color (typically yellow) per PROWAG specification.

Most single curb ramp replacements are pourable in 2 days — one for demo and base prep, one for pour. Building entrance ramps and retrofit commercial ramps take slightly longer if grading work is required to achieve compliant cross-slope.

Anderson: The City of Anderson has an active curb ramp replacement program in older commercial corridors. Downtown Anderson's commercial district has many 1970s–1990s curb cuts that predate PROWAG — these are often too steep, too narrow, or missing dome panels entirely. We work with property owners and city requirements on curb ramp upgrades along commercial frontages.

Carmel: Carmel's Unified Development Ordinance has specific requirements for ADA ramp construction at commercial sites. HOA-governed commercial districts may have additional standards. We verify local requirements before pouring — Carmel inspectors are thorough on accessible route compliance.

Fishers: Fishers Activity Permit portal handles ROW work including curb ramp installation. New commercial development in Fishers requires ADA-compliant accessible routes as a condition of the CO — ramp installation is often part of the final punch list items before occupancy.

Noblesville: Historic downtown Noblesville has curb ramps that predate accessibility standards. Commercial property owners upgrading their frontage often discover that the existing ramp fails the 1:12 slope requirement. The available run in an older urban streetscape sometimes requires a switchback or two-run ramp configuration to achieve a compliant slope — we design those on the estimate visit.

Westfield & Pendleton: New commercial development typically incorporates ADA ramps from the start. Retrofit work in older commercial areas follows the same spec as other service cities — permit from the appropriate city portal, PROWAG dimensions, dome panels.

Our ADA ramp running slope, cross-slope, width, landing dimensions, and detectable warning surface requirements follow the Public Rights-of-Way Accessibility Guidelines (PROWAG) published by the U.S. Access Board. The 1:12 maximum slope (R304.2.1), 2% maximum cross-slope (R304.2.1), and truncated dome requirements (R305) cited on this page come directly from PROWAG — the federal standard that governs all accessible pedestrian facility construction in public rights-of-way.
